5000W Hybrid Solar Inverter AC 110V DC 48V 50HZ/60HZ Pure Sine Wave Inverter 80A MPPT Charge Controller

$784.99

Category: China Factory Manufacturer Tag: Shenzhen Zhihuang Technology Co Ltd

Description

Description

5000W Hybrid Solar Inverter AC 110V DC 48V 50HZ/60HZ Pure Sine Wave Inverter 80A MPPT Charge Controlle

Overview:

The is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC sine wave output. Thanks to DSP control and advanced controlal gorithm, it has high response speed, high reliability and high industrial standard. Four charging modes are optional, i.e. Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging;and two output modes are available, i.e. Inverter and Mains, to meet different application requirements.The solar charging module applies the latest optimized MPPT technology to quickly track the maximum power point of the PV array in any environment and obtain the maximum energy of the solar panel in real time.

Feature

1. Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.

2. Two output modes: mains bypass and inverter output; uninterrupted power supply

3. Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging

4. Advanced MPPT technology with an efficiency of 99.9%.

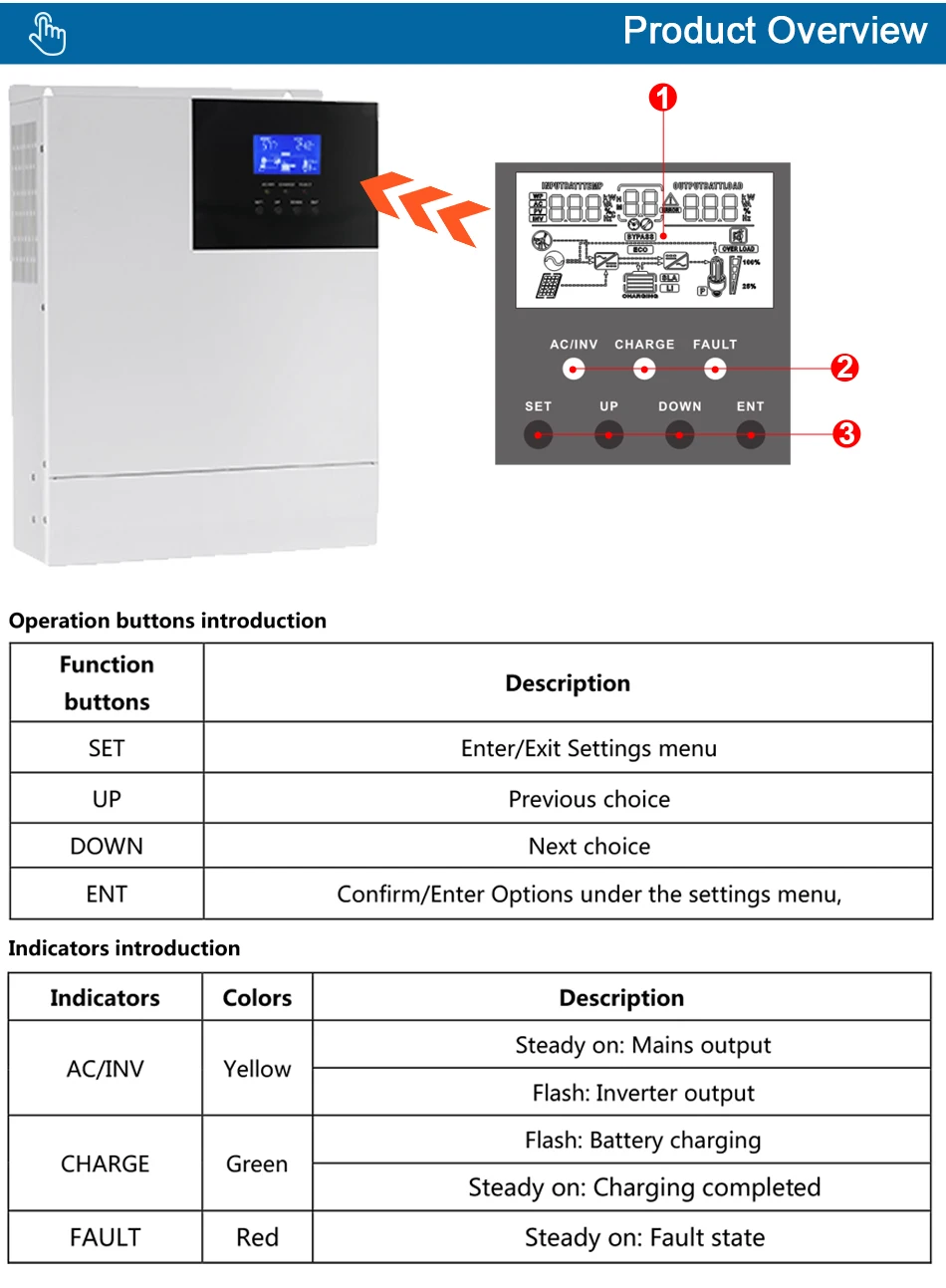

5. Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status.

6. ON/OFF rocker switch for AC output control.

7. Power saving mode available to reduce no load loss

8. Intelligent variable speed fan to efficiently dissipate heat and extend system life.

9. Lithium battery activation by PV solar or mains, allowing access of lead acid battery and lithium battery

10. 360 all round protection with a number of protection functions.

11. Complete protections, including short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc.

Basic System Architecture:

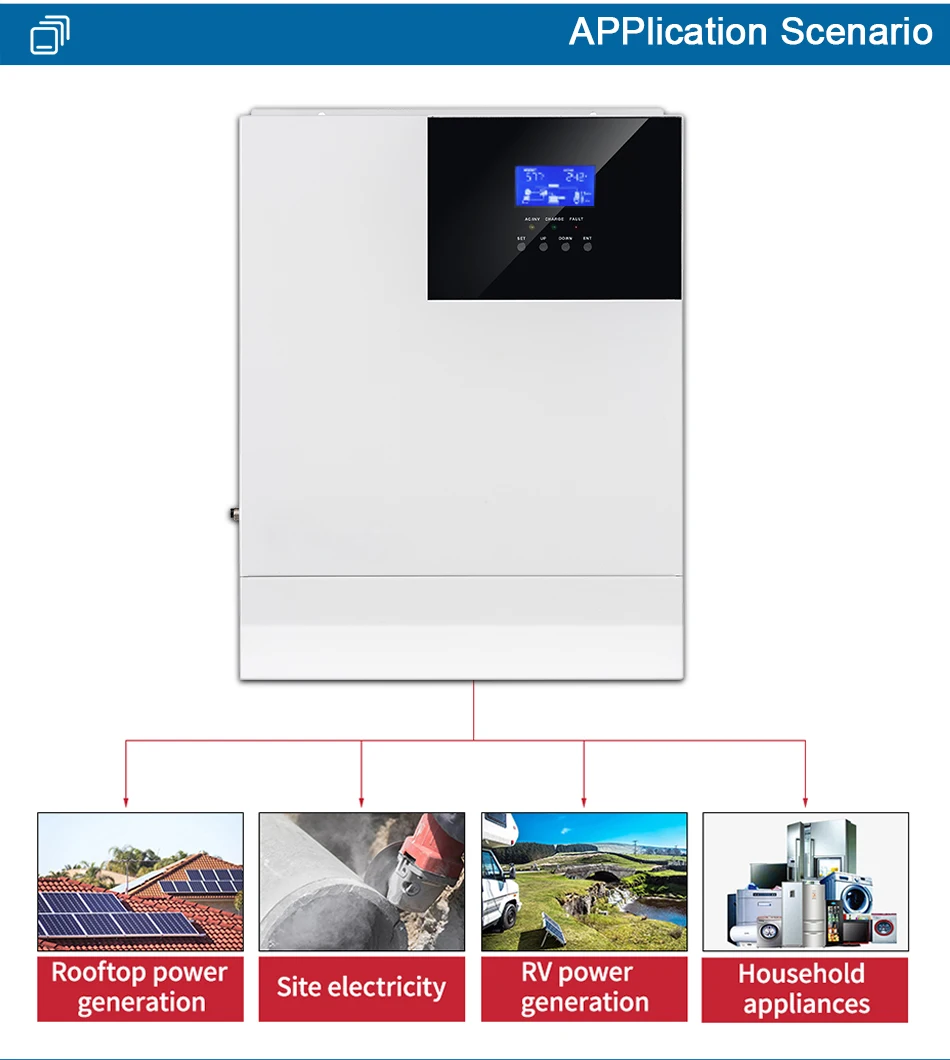

The figure below shows the system application scenario of this product. A complete system consists of the following parts:

1. PV module: Convert light energy into DC power, and charge the battery through the all-in-one solar charge inverter, or directly invert into AC power to drive the load.

2. Mains or generator: Connected at the AC input, to power the load while charging the battery. If the mains or generator is not connected, the system can also operate normally, and the load is powered by the battery and PV module.

3. Battery: Provided to ensure normal power supply to the system loads when solar energy is insufficient and the Mains is not connected.

4. Household load: Allow connection of various household and office loads, including refrigerators, lamps, TVs, fans and air conditioners.

5. All-in-one solar charge inverter: The energy conversion unit of the whole system.

Specific system wiring method depends on the actual application scenario.

Model	MLV5KW-U
ACmode
Ratedinputvoltage	110/120Vac
Inputvoltagerange	(90Vac-140Vac)±2%
Frequency	50Hz/60Hz(auto-sensing)
FrequencyRange	47±0.3Hz~55±0.3Hz(50Hz)/57±0.3Hz~65±0.3Hz(60Hz);
Overload/shortcircuitprotection	Breaker
Efficiency	>95%
Conversiontime(bypassandinverter)	10ms (Typicalvalue)
ACreverseprotection	yes
Maximum bypassoverloadcurrent	63A
Invertingmode
Outputvoltagewaveform	Puresinewave
Ratedoutputpower(VA)	5000W
Ratedoutputpower(W)	5000W
Powerfactor	1
Ratedoutputvoltage(Vac)	120VAC
Outputvoltageerror	±5%
Outputfrequencyrange(Hz)	50Hz±0.3Hz/60Hz±0.3Hz
Efficiency	>90%
Overloadprotection	(102%<load<110%)±10%:reportingerrorandturn off the output after 5 minutes;(110%<load<125%)±10%:reportingerrorandturn off the output after 10 seconds;Load>125%±10%:reportingerrorandturnoff theoutputafter5seconds;
Peakpower	10000VA
Loadedmotorcapacity	4HP
Outputshort-circuitprotection	Breaker
Specificationofbypassbreaker	63A
Ratedbatteryinputvoltage	48V(minimumstartvoltage44V)
Batteryvoltagerange	40.0Vdc~60Vdc±0.6Vdc(undervoltagealarm/turnoffvoltage/overvoltage alarm/overvoltagerestoration…settableLCDscreen)
Powersavingmode	Load≤25W
ACcharge
Batterytype	Leadacidorlithiumbattery
Maximumchargecurrent	40A
Chargecurrenterror	±5Adc
Chargevoltagerange	40~60Vdc
Short-circuitprotection	Breakerandblownfuse
Breakerspecification	63A
Overchargeprotection	Turnoffchargeafter1minalarm
Solarcharge
MaximumPVopencircuitvoltage	500Vdc
PVoperationvoltagerange	120-500Vdc
MPPTvoltagerange	120-450Vdc
Batteryvoltagerange	40-60Vdc
Maximumoutputpower	5000W
Chargecurrentrangeof solarenergy(settable)	0-80A
Chargeshort-circuitprotection	Blownfuse
Wiringprotection	Inversewiringprotection
Authenticationspecification
Specificationauthentication	CE(IEC62109)、RoHs
EMCauthenticationgrade	EN61000
Operationtemperaturerange	-15°Cto55°C
Storagetemperaturerange	-25°C~60°C
Humidityrange	5%to95%(Conformalcoatingprotection)
Noise	≤60dB
Thermaldissipation	Forcedcoolingwithadjustableairspeed
Communicationinterface	USB/RS485(WiFi/GPRS)/drynodecontrol
Dimension(LWD)	426mm322mm126mm
Weight(kg)	10.9
