1.Go to the new Foxwell website, choose your product, under the page, click the Download, then download FoxAssist Installer.zip software

2.Install Foxwell Clients software, plug machine to laptop via USB cable

3.Register foxwell account and complete the releated information.

4.click “update”menu, then click FoxAssist Activation menu, activation the sn number,

4. the click update, choose all software to update

FOXWELL NT510 Elite –Professional Scanner for Your Car

☞Do you want specific tool for your model?
☞Do you want more complete functions tool at low price?

NT510 Elite is the most cost-effective professional scan tool for enthusiasts, small garages, independent repairs, specialized garages and technicians by delivering OE-level diagnosis on all the electronic systems. The most important is NT510 Elite support Lifetime Free Update

Foxwell NT510 Elite Features and Benefits:

👍Diagnostics for all systems. The NT510 Elite lets you scan all the available systems for problems. From the engine and transmission to the ABS, SRS, EPS, wheels and every other on-board system.

👍Full OBD2 Check,the Foxwell NT510 Elite will display and clear generic codes in all the available systems. Just as important, it allows you to view freeze frame data so that you know when a code was registered. And you can also pull live sensor data to check the health and performance of various components.

👍Many reset functions. First of all, you can use the NT510 Elite to reset (turn off) the Check Engine Light. The same goes for all other warning lights. In addition to that, it supports oil reset, EPB reset, SAS reset, battery reset, DPF reset, TPS reset, ABS bleeding etc.

👍Bi-directional controls. You can initiate bidirectional control tests with the Foxwell NT510 Elite. It will command the component to perform as if the command was from the PCM. For example, you can fold mirrors, roll windows, open/close doors, activate/deactivate brakes using this scanner.

👍Active tests and adaptations. While you won’t actually be able to do coding and programming, you can perform active tests and relearn new components. That means you can use the tool to replace components like battery and sensors and to relearn steering angle position, throttle position etc.

👍Multilingual: support 11 kinds of language, include English, Spanish, Portuguese, French, Swedish, English, Dutch, Japanese, Italian, Russian, German

👍Lifetime Free update: Online free upgrade to obtain the latest bug fixes, new vehicles, newly added parameters and functionality at your fingertips, and two-year warranty is offered. if you have any problem, you can contact me, i will help you solve.

NOTE: NT510 elite come with one free software(not one vin), if you need other software, please contact me. or buy one foxwell official website

Multi Maintenance Service For Your Model

Oil Service Light Reset: allows you to reset the service lamps on the instrument cluster.

Electronic Parking Brake (EPB) Service: Allows you to perform service and maintenance, including deactivation and activation of brake control system, bleeding brake fluid, opening and closing brake pads, and setting brakes after disc or pad replacement, on where electronic brake systems are fitted. Diagnoses EPB caliper functionality, initializes the wear indicator if new pads installed and deactivates or re-activates brake control system.

Tire Pressure Monitoring System (TPMS) Programming: Allows you to check the tire sensor IDs from the vehicle ECU and to perform TPMS programming and reset after tires sensors are replaced or rotated.

Airbag (SRS) / Antilock Brake System (ABS) Service: Allows you to use the scanner temporarily to activate or control anti-lock brake system, airbags or components.

Steering Angle Sensor (SAS) Calibration: Allows you to perform calibration of the steering angle sensor, which permanently stores the current steering wheel position as straight-ahead in the sensor EEPROM. After calibrate sensor successfully, its fault memory will be automatically cleared.

Diesel Particulate Filter (DPF) Regeneration: Allows you to perform the DPF cleaning to clear the blockage through continuous burning of the particulates captured in the DPF filter. When a DPF regeneration cycle completed, the DPF light automatically goes off.
……

What’s the importance of active test? NT510 Elite Support

Active Tests, also known as Actuator Tests, are bi-directional diagnostic tests on vehicle systems and component. The tests let you to use the scanner temporarily activate or control a vehicle system or component, and when you exit the test, the system/component returns to normal operation. Some tests display a command to the operator. For example, if “Press Brake Pedal” displays, the operator has to press and hold the brake pedal and then continue. The sequence, number and type of tests are dictated by the control module. On some systems, the actuator tests cannot be restarted until the ignition key is switched off for some time. Alternatively, briefly start and run the engine, shut down, turn the ignition to the run position, then re-initiate the actuator tests.

The tests activate a component, but they do not check if the component is working correctly. Make sure the components to be tested are in good condition and correctly mounted.

Foxwell NT510 elite Car Software List (updated to 2021) :

NOTE: If you want to know whether your car includingI vehicles support list or not, please leave us message in this format, “for Audi A4 2002, 2.0T diesel, VIN:xxx , need airbag reset function”, we will reply you within 24 hours.

NOTE: you can choose one brand to installed, or left a message, we can install software for you!

1. for Ford , ( for Ford vehicles )
2. for BMW , ( for BMW , for MINI , for Rolls-Royce vehicles )
3. for Chrysler , ( for Chrysler, for Dodge , for Jeep vehicles )
4. for Fiat , ( for Fiat , for Alfa , for Abrth, for Lancia vehicles )
5. for GM , ( for Buick, for Cadillac, for Chevrolet, for Daewoo, for Holden vehicles )
6. for Honda , ( for Honda, for Acura vehicles )
7. for Hyundai , ( for Hyundai , for Kia vehicles )
8. for Land Rover , ( for Land Rover , for Jaguar vehicles )
9. for Opel , ( for Opel, for Vauxhall vehicles )
10. for Toyota , ( for Toyota , for Lexus, for Sicon vehicles )
11. for ( for VolksWagen , for Audi , for Seat , for Skoda , for Lamborghini , for Bentley vehicles )
12. for Astonmartin , ( for Astonmartin vehicles )
13. for Ferrari , ( for Ferrari vehicles )
14. for Maserati , ( for Maserati vehicles )
15. for Mazda , ( for Mazda vehicles )
16. for Volvo , ( for Volvo vehicles )
17. for Porsche , ( for Porsche vehicles )
18. for Benz(for Benz, for SMART, for Maybach vehicles)
19. for Renault(for Renault, for Dacia vehicle)
20. for PAS (for Peugeot, for Citreon vehincles)
21. for Nissan (for Nissan , for Infiniti)
22. for Mitsubishi
23. for Suzuki
24. for Isuzu
25. for Subaru

Foxwell NT510 Elite Support Language:

Korea, Spanish, Portuguese, French, Swedish, English, Dutch, Japanese, Italian, Russian, German

Best Service for You!

●Lifetime Free Update Online
●One Year warranty
●Lifetime Free Technical Support

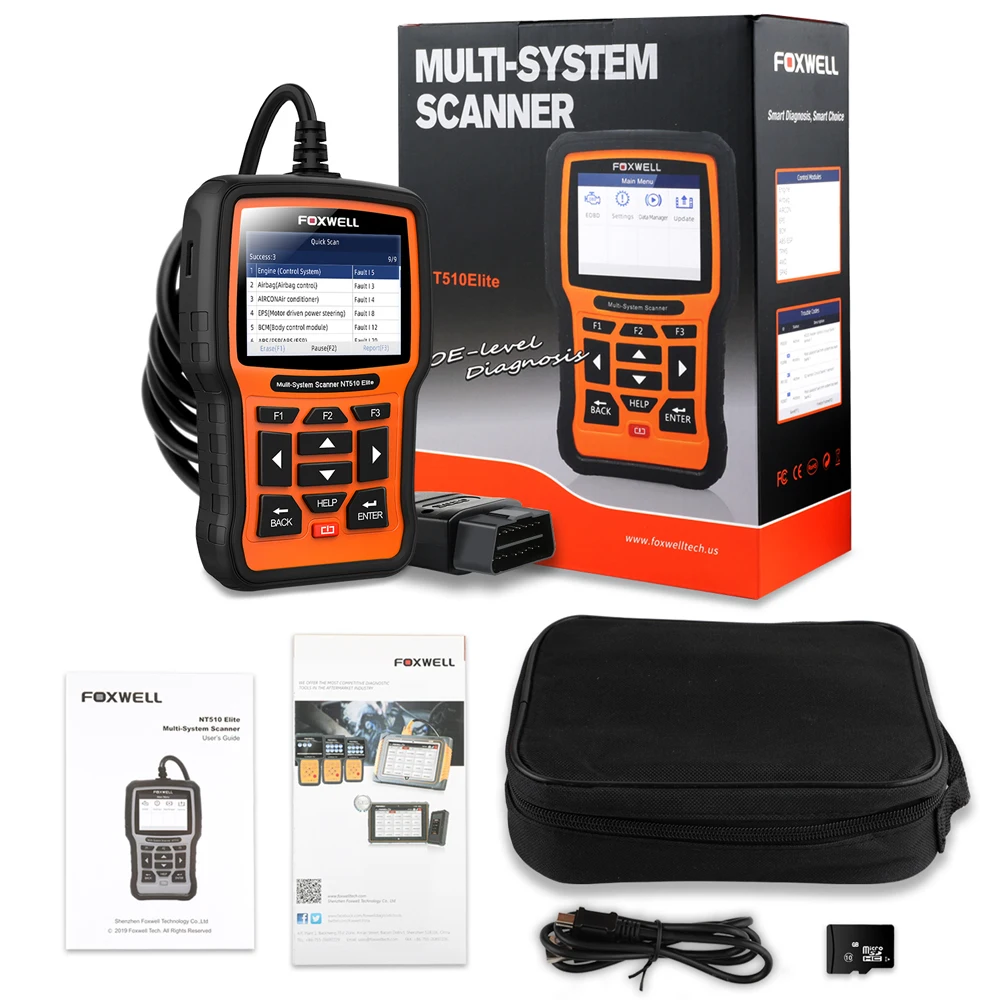

Foxwell NT510 Elite Package List:

1 * Foxwell NT-510 Elite Multi system Scanner
1 * English User Manual
1 * USB Flash Disk
1 * USB Cable
1 * Storage Bag (in Carton box)
