Description
Please select the PAL/NTSC Correctly according to your country
Features:
– Mini design, adopts the 1/4 inch CMOS image sensor
– 700TVL horizontal resolution, high clear picture.
– PAL / NTSC signal system
– With high stability, widely applicable for various indoor environment
– Easy installation
Specifications:
Image Sensor: 1/4 Inch CMOS
Signal System: PAL / NTSC
Horizontal Resolution: 1000TVL/700TVL
Effective Pixels: PAL: 628(H) x 582(V),NTSC: 720(H) x 480(V)

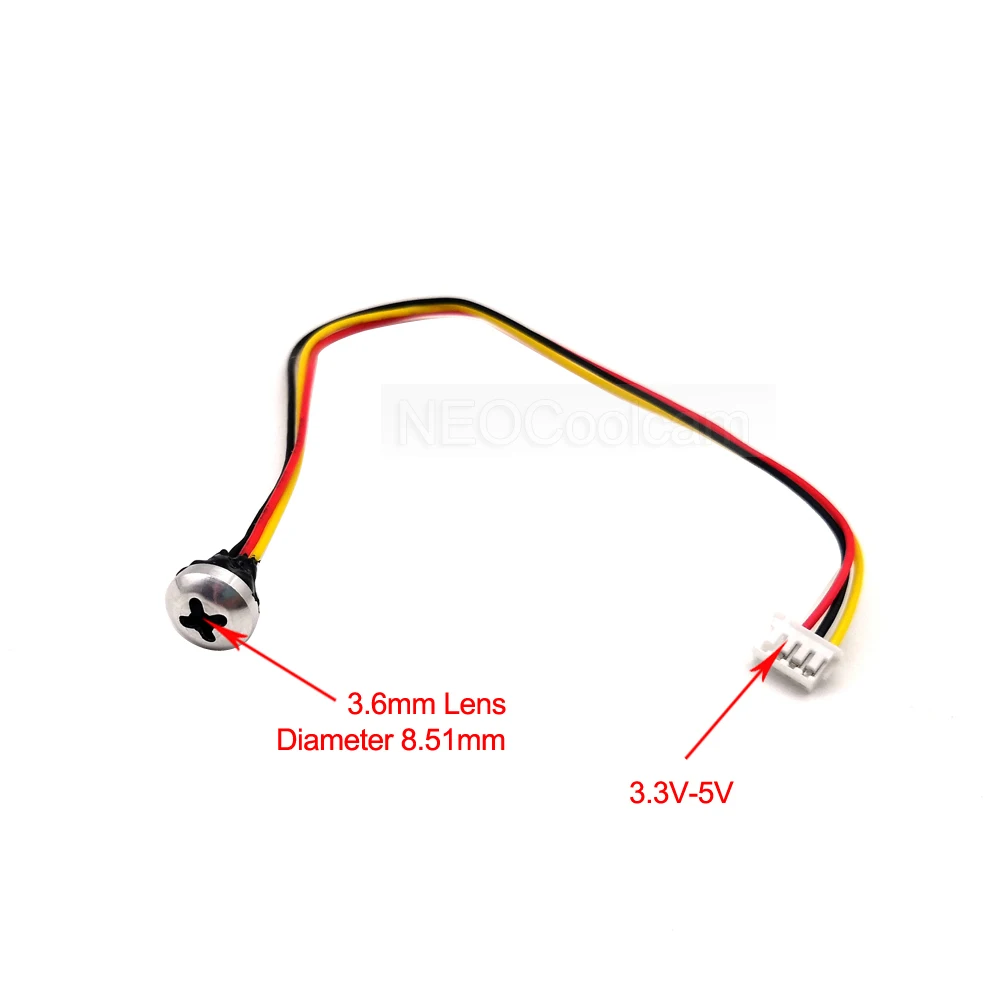

Lens: 3.6mm
Shutter Speed: 1/50 (1/60)-1/100,000 sec
White Balance: Auto
S/N Ratio: > / = 48dB (AGC OFF)
Minimum Illumination: 0.2LUX / F1.2
Video Out: RCA 1.0Vp-p

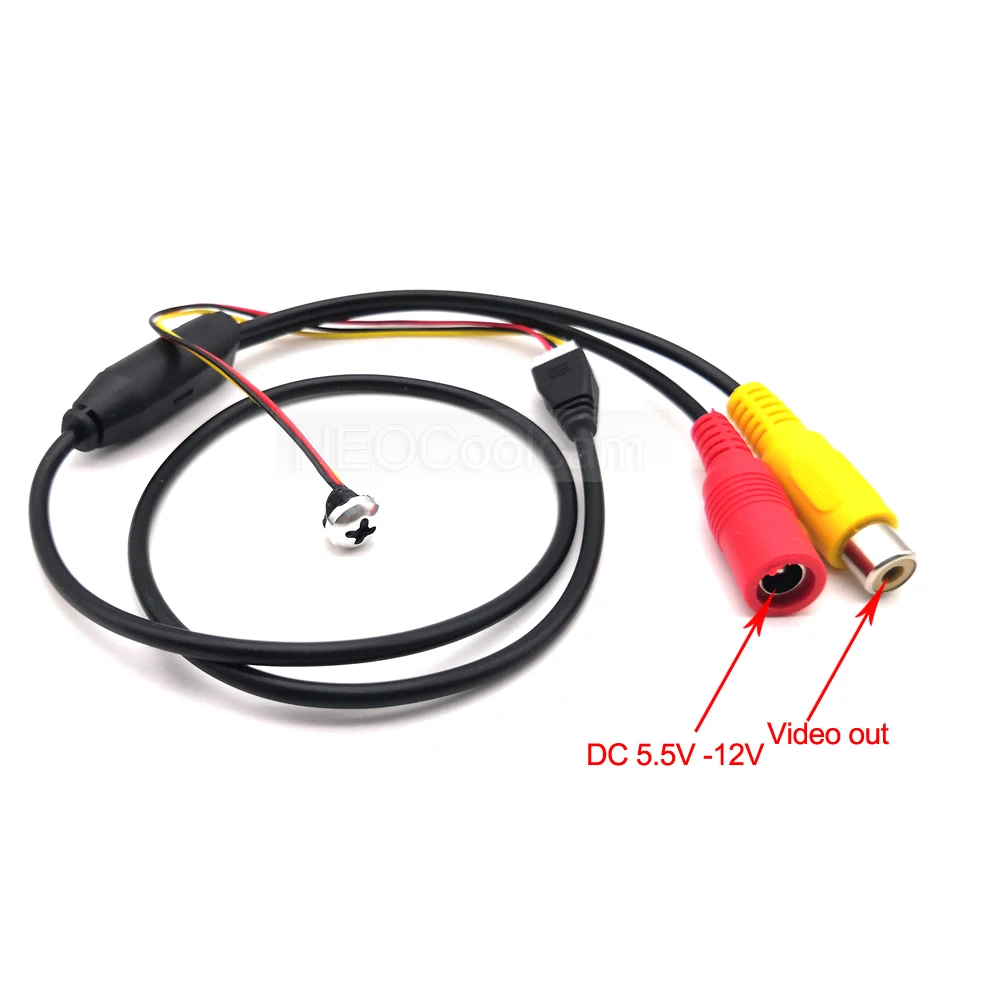

Power Consumption: DC8V-12V 500mA (DC port)
Operation Temperature: -10~+50 centigrade degree
Operation Humidity: RH95% max

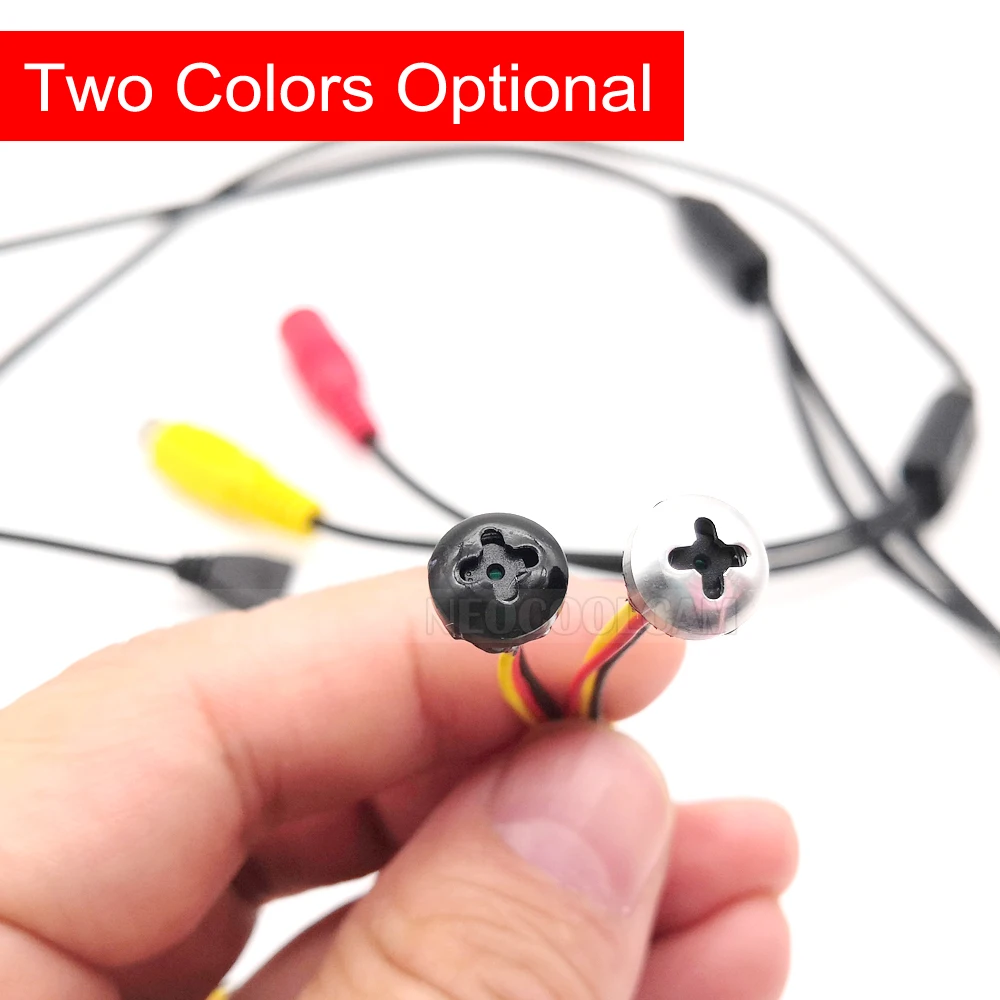

Camera Color: Black / Silver
Camera Type: Analog camera
Head Size: 8.51mm




- if the design and specification is not what you are looking, we accept csutom-made based on your requirement.
- OEM your logo/lable and custom gift box are available too
- Free Sourcing Service: Just send product images/weblinks of what you are looking for, we will proposal at direct-factory offering. Save money, Save time, business easier than even before
