New 12V 24V 48V 100Ah 200Ah 280Ah 300Ah LiFePo4 Battery Pack Lithium Iron Phosphate Batteries Built-in BMS For Solar Boat No Tax

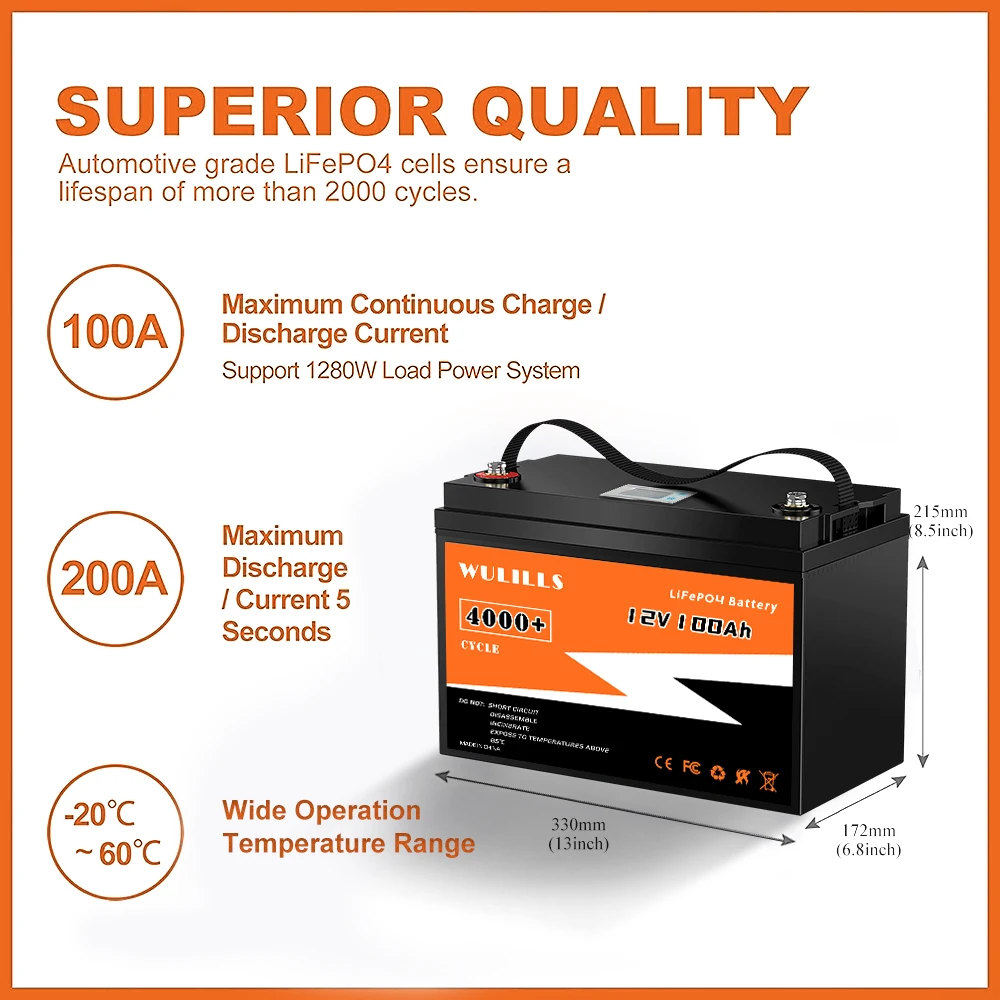

12V 100Ah Lifepo4 Battery

Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 100Ah 0.2C
Built-in BMS:4S100A
Energy: 1280Wh
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Charge Voltage: 14.6±0.2V
Charger Current: 20A
Max. Charge Current: 50A
Max. Continuous Current: 100A
Max. Pulse Current: 200A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉)
Discharge Temperature: -20 to 60℃ (-4 to 140℉)
Storage Temperature: 0 to 45℃ (32 to 113℉)
Water Dust Resistance: IP5
Case Material: ABS
Dimension (L/W/H): 330*172*215 mm
Weight: Approx. 14kg
Terminal Type: M8

12V 200Ah Lifepo4 Battery

Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 200Ah 0.2C
Built-in BMS:4S150A
Energy: 2560Wh
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Charge Voltage: 14±0.2V
Suggest Charger Current: 40A
Max. Charge Current: 100A
Max. Continuous Current: 150A
Max. Pulse Current: 300A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉)
Discharge Temperature: -20 to 60℃ (-4 to 140℉)
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: ABS
Dimension (L/W/H): 530*237*217mm /
Weight: Approx. 20kg
Terminal Type: M8

12V 280Ah Lifepo4 Battery

Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 280Ah 0.2C
Built-in BMS:4S250A
Energy: 3584Wh
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Charge Voltage: 14±0.2V
Suggest Charge Current: 50A
Max. Charge Current: 100A
Max. Continuous Current: 250A
Max. Pulse Current: 500A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉)
Discharge Temperature: -20 to 60℃ (-4 to 140℉)
Storage Temperature: 0 to 45℃ (32 to 113℉)
Water Dust Resistance: IP5
Case Material: ABS
Dimension (L/W/H): 520*269*220 mm /
Weight: Approx. 29kg
Terminal Type: M8

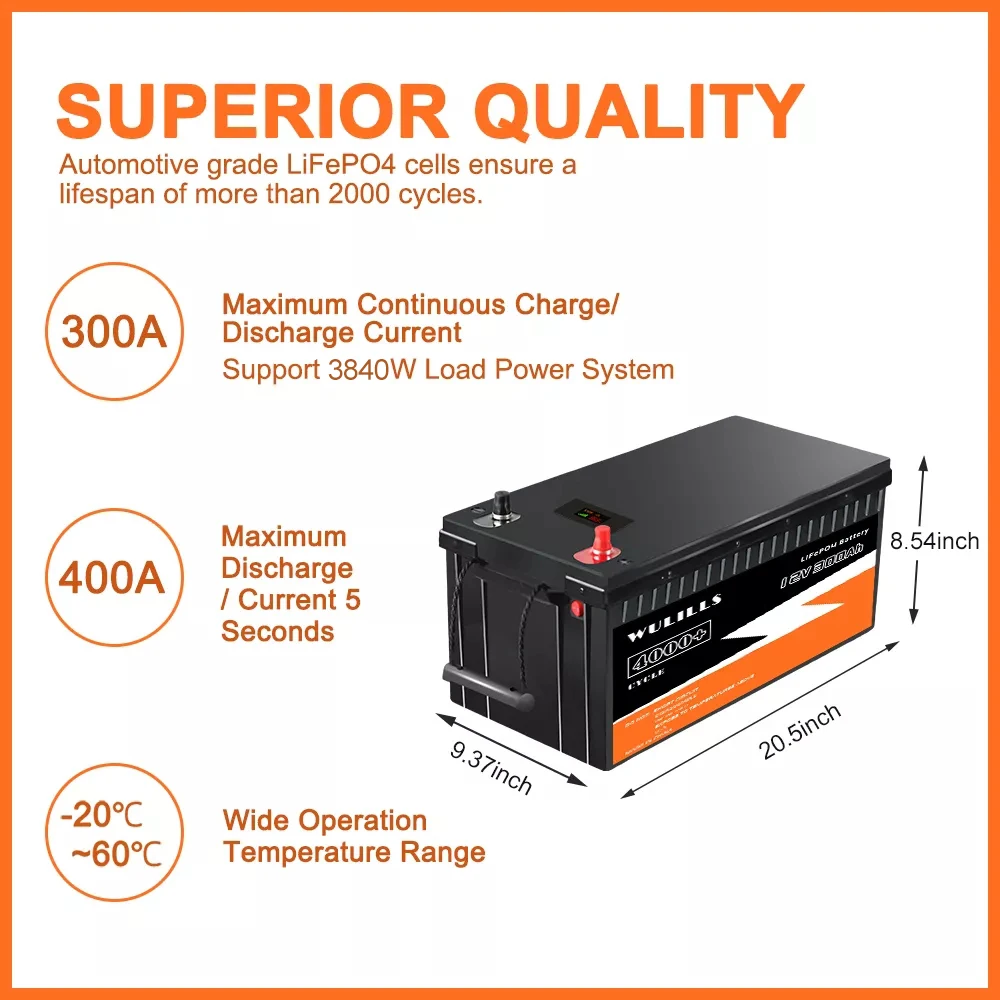

12V 300Ah Lifepo4 Battery

Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 300Ah 0.2C
Built-in BMS:4S250A
Energy: 3840Wh
Cycle Life: ＞4000 cycles at 0.2C;
Charge Voltage: 14±0.2V
Suggset Charge Current: 60A
Max. Charge Current: 100A
Max. Continuous Current: 250A
Max. Pulse Current: 500A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉)
Discharge Temperature: -20 to 60℃ (-4 to 140℉)
Storage Temperature: 0 to 45℃ (32 to 113℉)
Water Dust Resistance: IP5
Case Material: ABS
Dimension (L/W/H): 530*237*217 mm /
Weight: Approx. 33kg
Terminal Type: M8

24V 100Ah Lifepo4 Battery

Specifications
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah 0.2C
Built-in BMS:8S100A
Energy: 2560Wh
Cycle Life: ＞4000 cycles at 0.2C;
Charge Voltage: 29±0.2V
Suggest Charge Current: 20A
Max. Charge Current: 50A
Max. Continuous Current: 100A
Max. Pulse Current: 200A(＜3S)
Discharge Cut-off Voltage: 20.0V
Charge Temperature: 0 to 45℃ (32 to 113℉)
Discharge Temperature: -20 to 60℃ (-4 to 140℉)
Storage Temperature: 0 to 45℃ (32 to 113℉)
Water Dust Resistance: IP5
Case Material: ABS
Dimension (L/W/H): 530*277*217 mm /
Weight: Approx. 22kg
Terminal Type: M8

48V 70Ah LiFePO4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 70Ah 0.2C
Built-in BMS:16S120A
Energy: 3584Wh
Cycle Life: ＞4000 cycles at 0.2C;
Charge Voltage: 51.2±0.2V
Suggest Charge Current: 10A
Max. Charge Current: 30A
Max. Continuous Current: 120A
Max. Pulse Current: 200A(＜3S)
Discharge Cut-off Voltage: 40.0V
Charge Temperature: 0 to 45℃ (32 to 113℉)
Discharge Temperature: -20 to 60℃ (-4 to 140℉)
Storage Temperature: 0 to 45℃ (32 to 113℉)
Water Dust Resistance: IP5
Case Material: ABS
Dimension (L/W/H): 520*269*220 mm /
Weight: Approx. 24kg
Terminal Type: M8

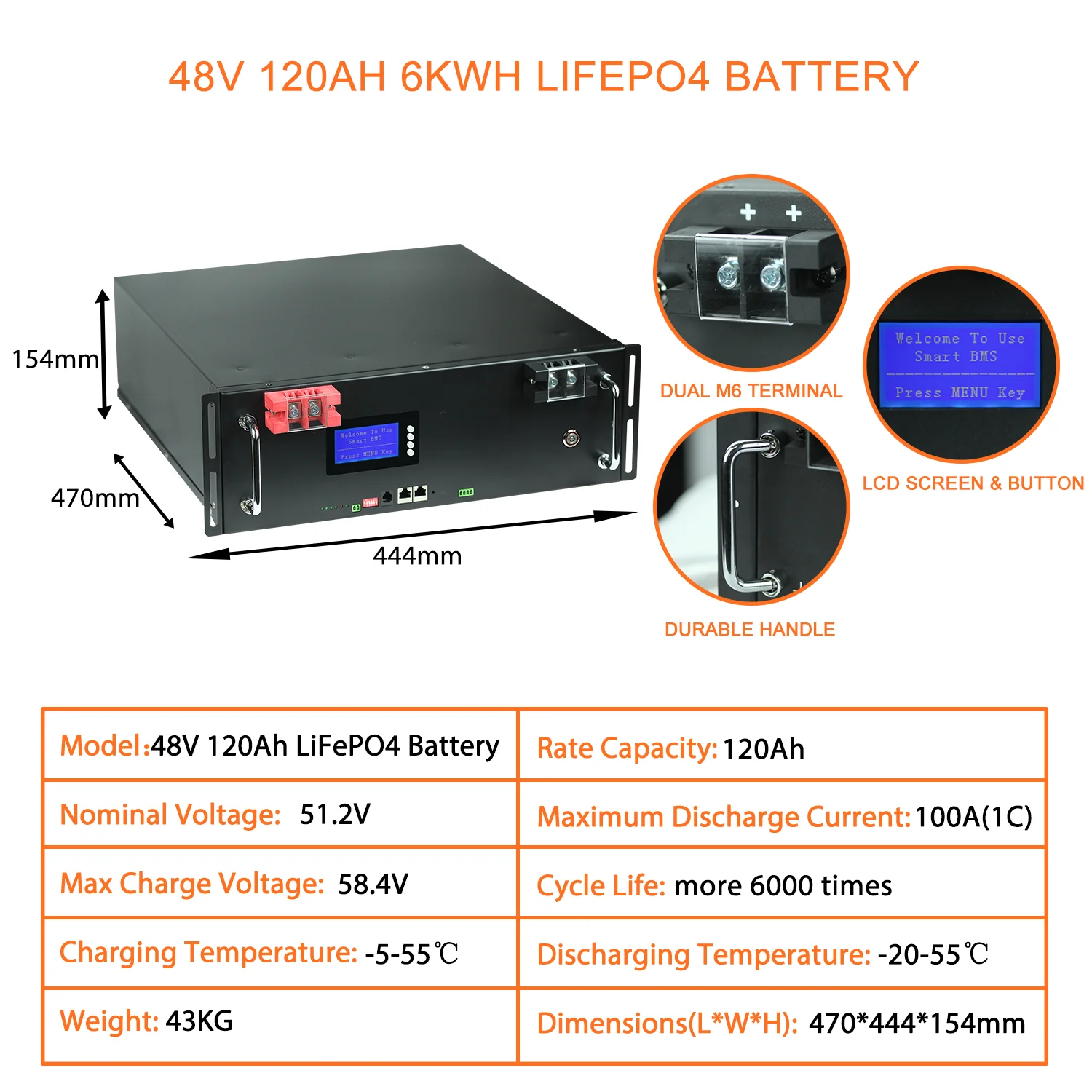

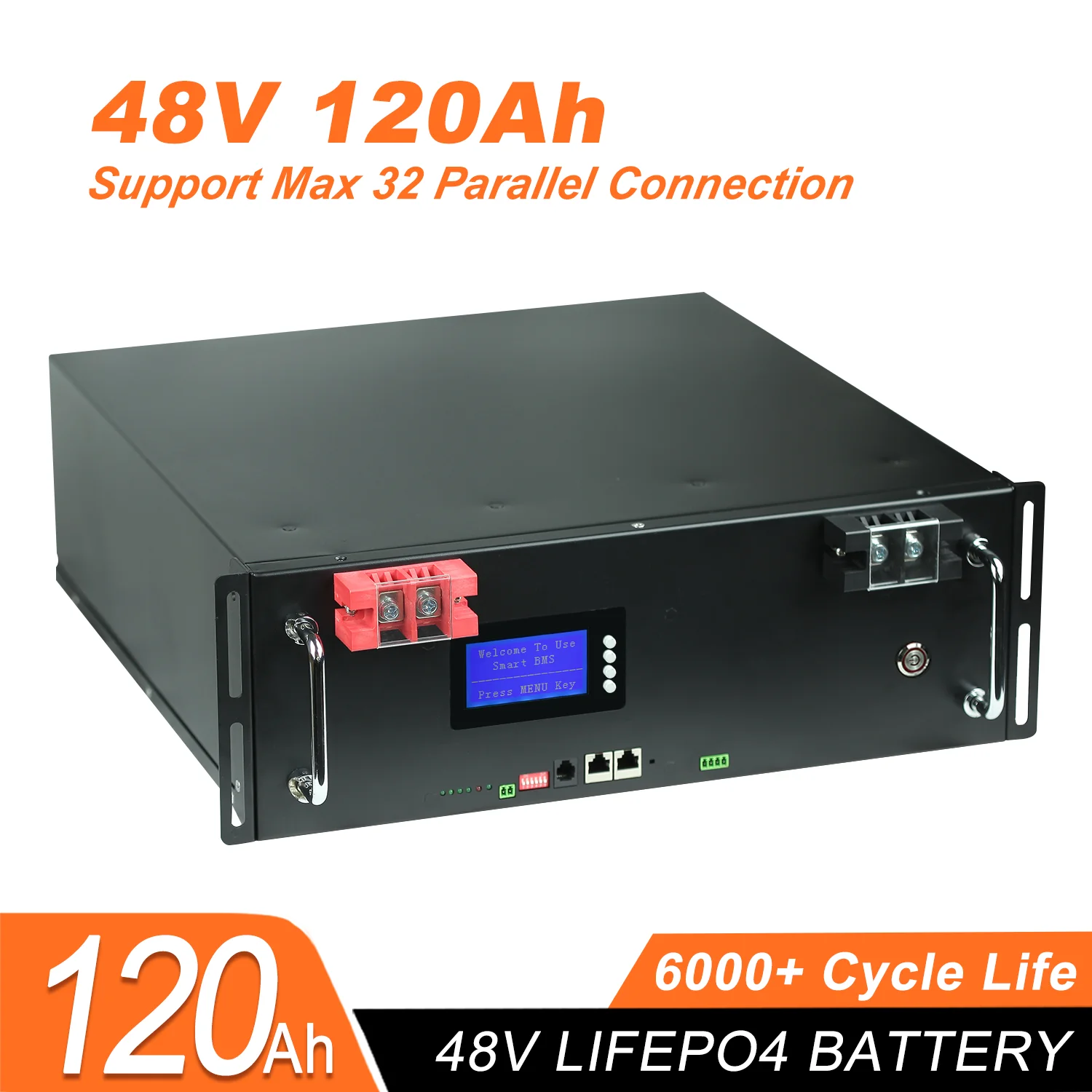

48V 120Ah LiFePO4 Battery Pack

Suppor Max 32 Parallel connection
made of grade a 120Ah cells
with smart 16S100A Built-in BMS

All Built-in BMS Protection

Overcharge protection
Overdischarge protection
Overcurrent protection
Short circuit protection
Cell voltage self balance

LiFePO4 INTERNAL COMPONENTS

All our lifepo4 pack was made of new grade A or A- cells,we promise good quality

Connection Of Solar Panel(MPPT) and Battery

Two Charging Methods

1.It can charging with Lifepo4 charger
2. It can be charging with Solar panel

Wide LiFePO4 APPLICATION

We Provide 5-Year Quality Warranty
