1 * Main Unit

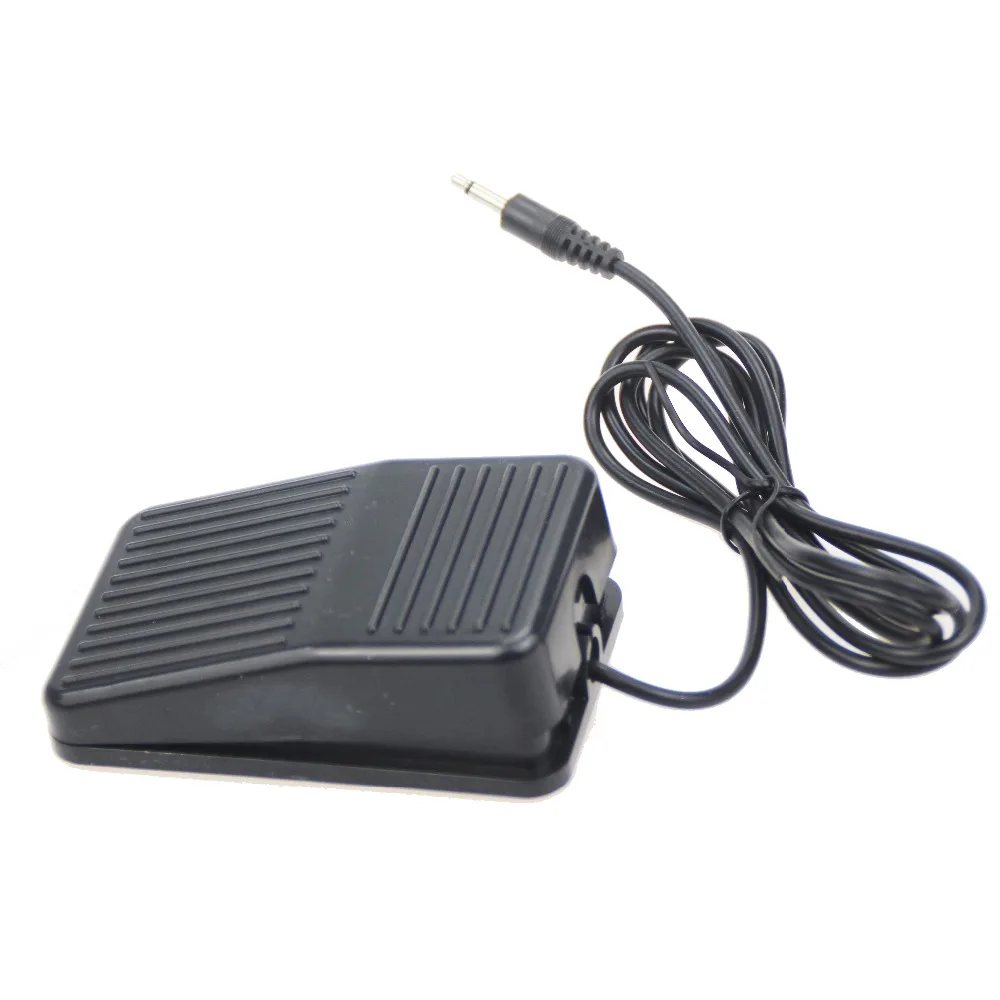

1 * Foot Switch

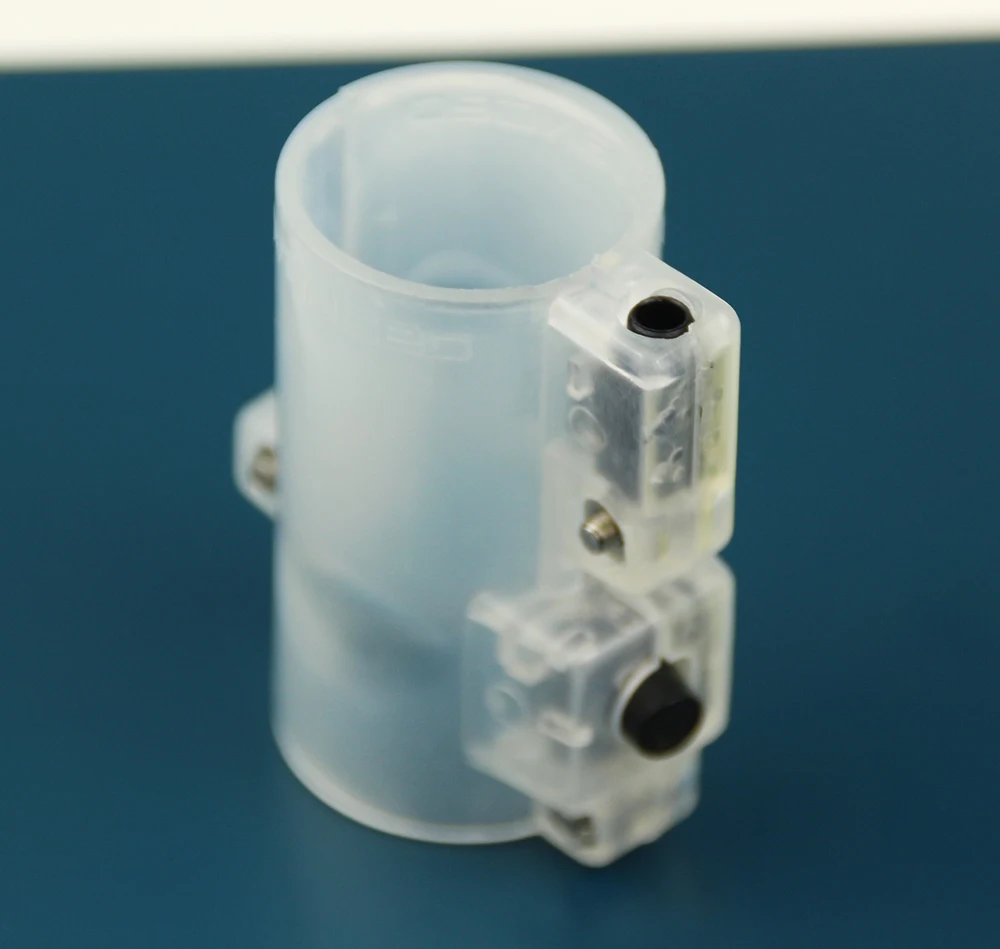

1 * Dispenser Stand

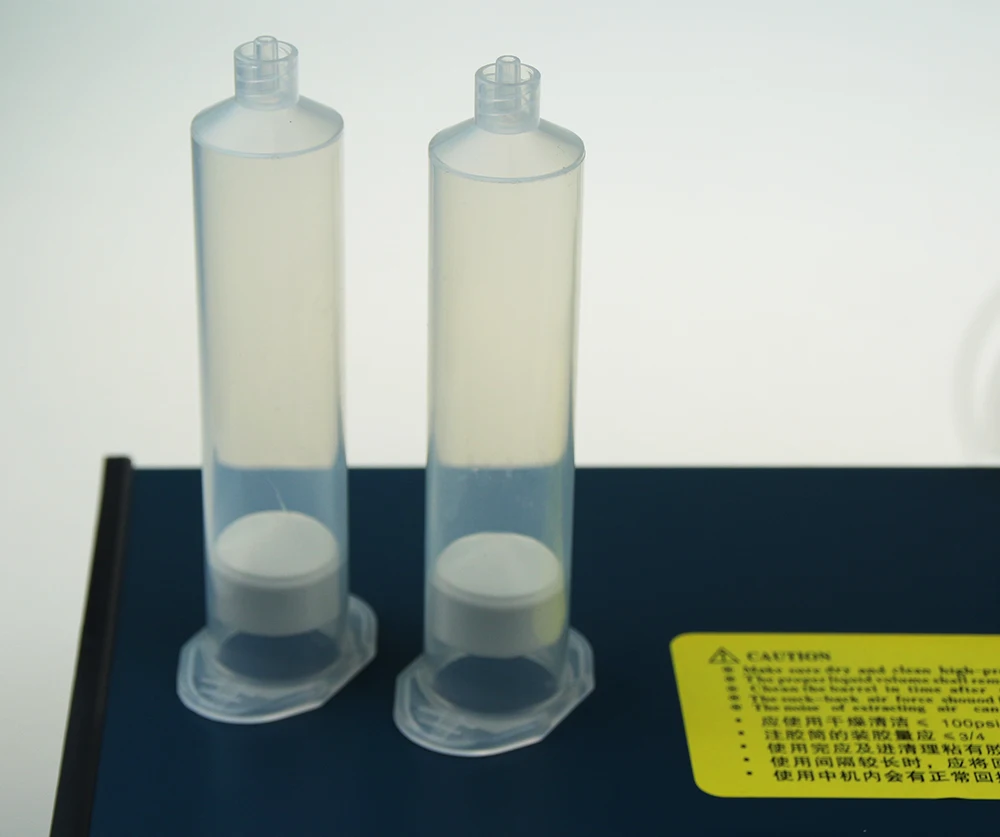

2 * 30cc Liquid Barrels

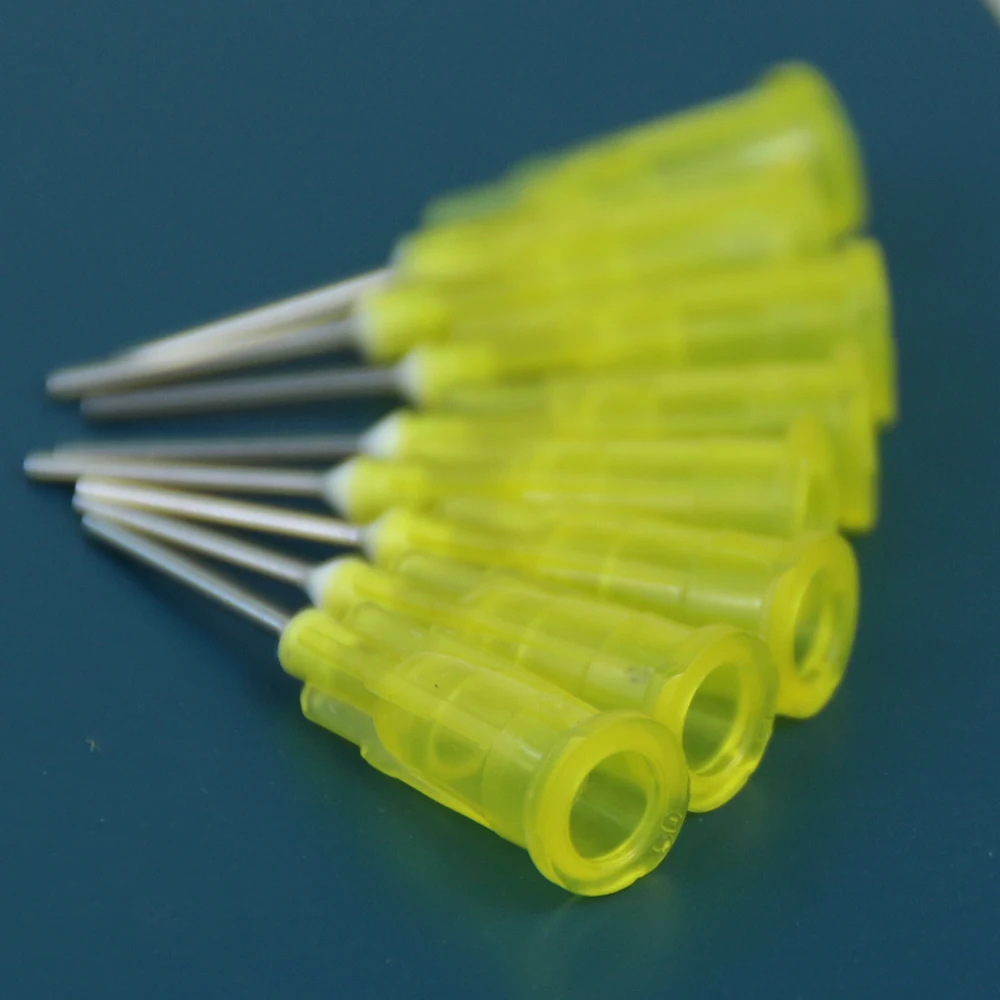

5 * Steel Needle/Tips
1 * Air Tube to Barrel
1 * Air Tube to Air Supply
1 * Hand Switch
1 * Power Cable

YDL – 938 – a is a constant positive to fluid control equipment and technology research, development and production of fluid control equipment of excellent brand, its products in all kinds of new type of adhesive, improvement on new USES, innovation, to meet the new needs of various users today. Division I independent production and sales. After sales service and have more advantages in price.

YDL-983A can use a variety of low to high viscosity liquid, or liquid with liquidity, sustainable out every time, high precision, good liquidity. KeJiao, manual, automatic running and more than 10 kinds of glue method is optional. Powerful, digital control.

YDL983A price: 600 yuan of dispensing machine on the market, now only 310 yuan. Product quality, our dispensing machine precision comparable JinKouJi, manual, quality first-class, repair rate is almost zero, let you buy happy with ease.

Precision automatic digital control intelligent drip machine, using the latest digital control system, ensure consistency of timing out. Function more humane, more simple and easy operation, and can be easily coated, marking and drip, producing high quality products, improve production efficiency. The machine can work reliably for a long time in a different environment, the service life of over 10 years. Change parts equipped, according to the different needs of different parts, can be precision spit out various viscosity and viscosity fluid. Should be widely in electronic, aviation, optical, chemical, automotive, medical, petroleum, packaging, jewelry, and machinery, and other fields.

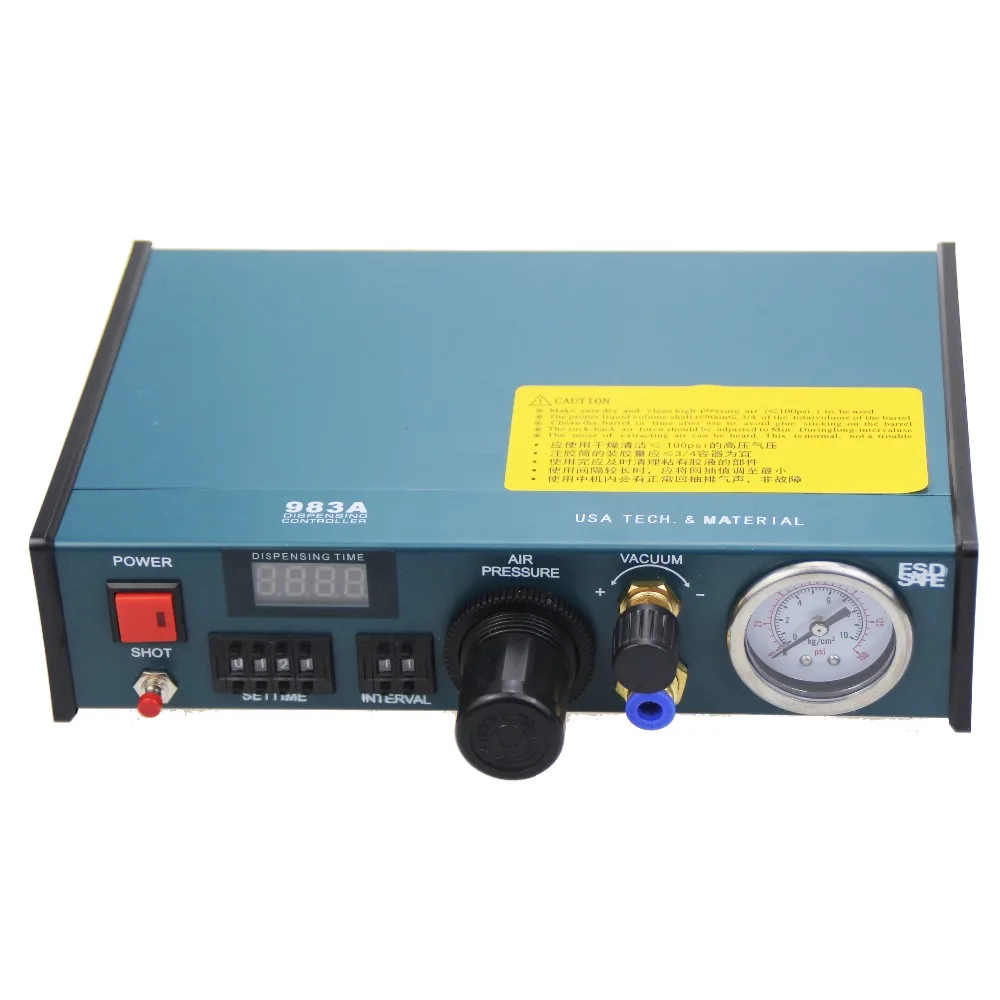

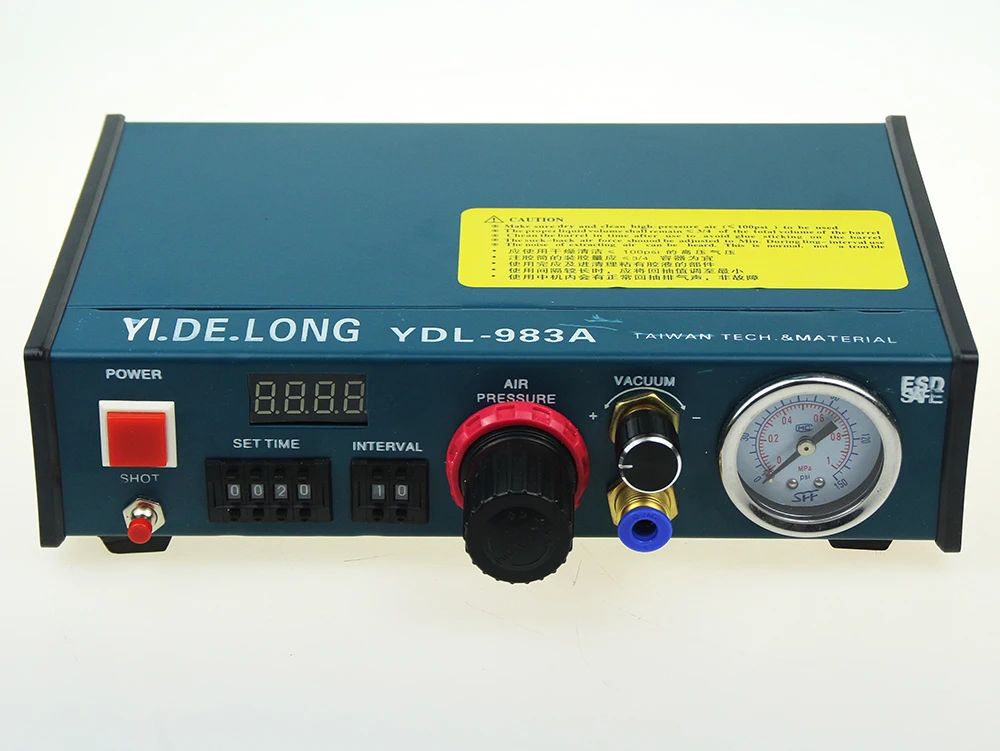

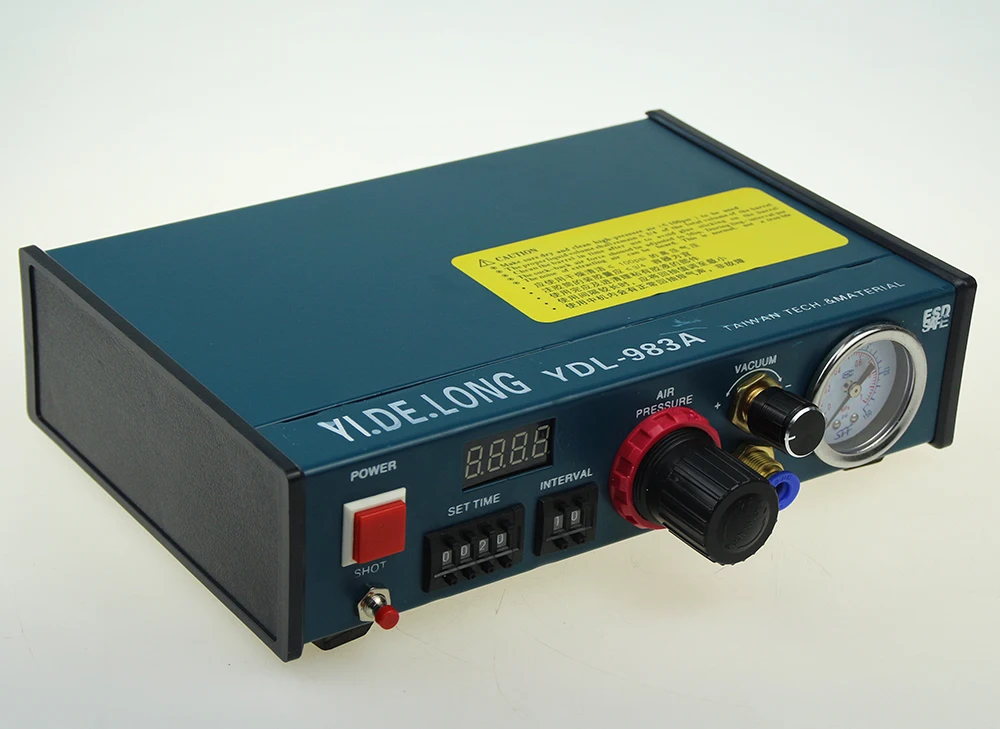

Parts that Power button:

1.Power button: press the light is on, for the lights went out off.

2.Spit out time display: display setting time.

3.Input pressure regulator: pull out first, reverse for air pressure is small, suitable to large. 4.Barometer: display range of 0-100 psi.

5.Vacuum controller: reversal for vacuum back to big, into a vacuum back to small.

6.Test button: in debugging, use alternative foot switch.

7.Spit out time to dial the code key: display setting time, the way to add and subtract 00.01 S to 00.01 S.

8.Time interval set dial the code key: display setting time, adopts the way of add and subtract 0.1 S to 9.9 S (automatic timing)

9.Vomit outlet: link out cylinder (cylinder).

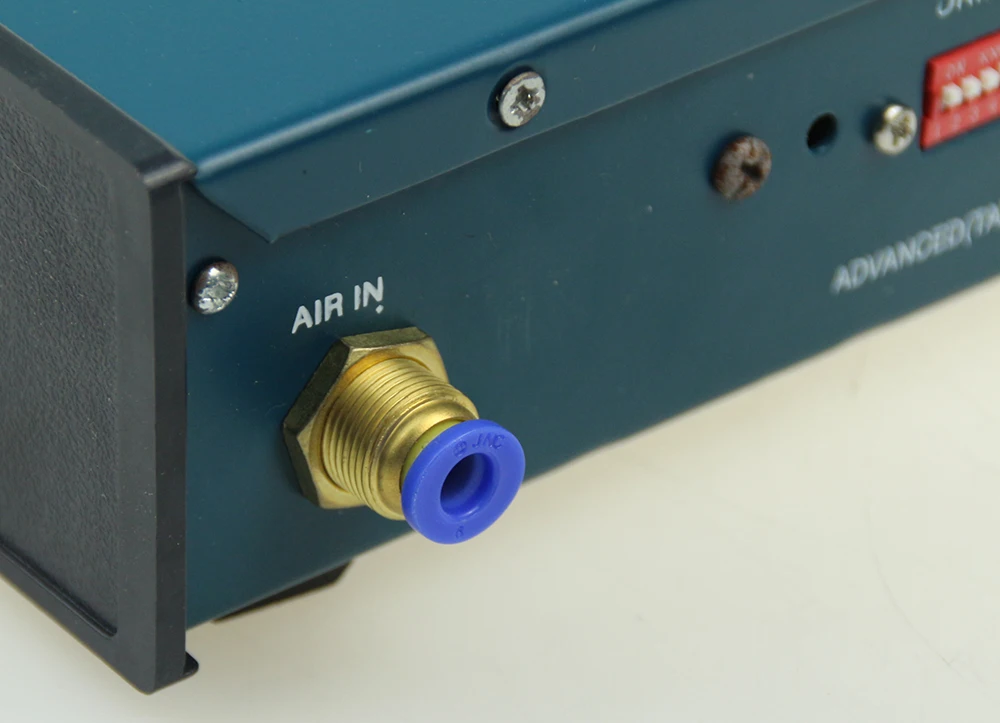

10. Pressure input port: the connection clean high pressure source

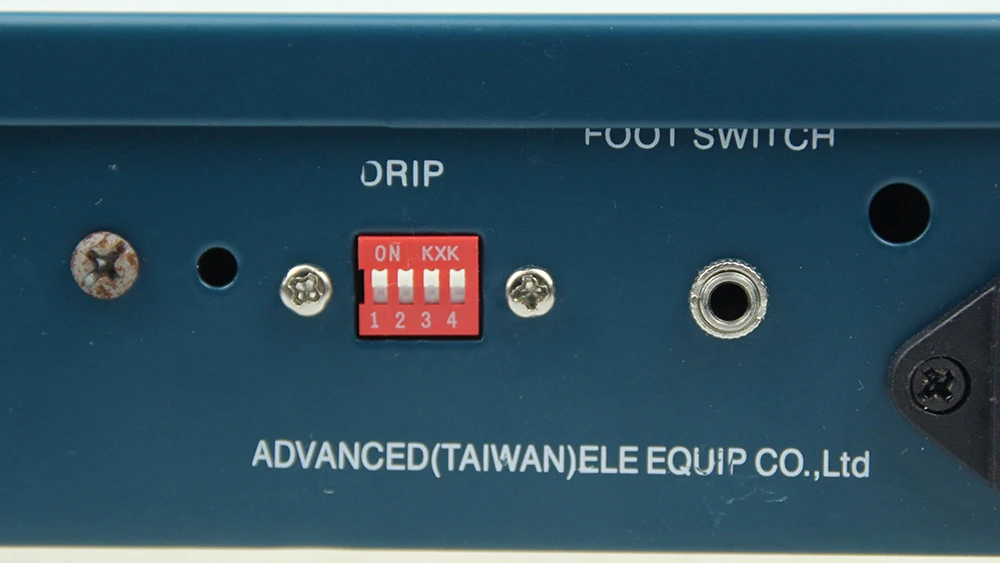

11. Spit out way of programming: 16 free way of setting out

12. The foot controller interface: connect the pedal switch

13. The power input socket

14. The insurance holder

Simple debug According to the installation drawing machine connected (note the use of voltage), after put in a selected needle tsui 3/4 or less liquid cylinder on the nozzle. 11. Not out way of programming: setting out way under a state of F1, open the power switch on the host. Adjust 3. The input air pressure regulator: first pull, reverse for air pressure and suitable to small, air pressure as for 25 psi as a calibration test for the first time. Stepped on the foot switch or press the “SHOT” button until uniform liquid pours out, the normal work of the machine. By adjusting the 2. Spit out time setting code key and replace the needle tip and adjust 3. Input pressure regulator, can get corresponding need liquid pours out. Adjust 5. Vacuum controller: reversal for vacuum back to big, suitable to vacuum back to small, the liquid seeping in spit out when there will be no drops. Need to automatic timing control, by adjusting the 8. Time interval set dial the code key and 11. Way out programming, and (2) time setting dial the code key to cooperate to achieve. Every time the liquid out
